All in one Machine 51.2V 100Ah Lifepo4 Battery One Stop Home Energy Storage System 20kWh 30kWh 15kWh 10kWh 5kW Inverter Battery
Products Parameters
|
Basic Parameters
|
Voltage
|
32.5-51.2V
|
|
Capacity
|
100Ah(Standard )
|
|
|
Energy
|
5-20kWh
|
|
|
Internal resistance/Layers
|
≤120mΩ/1-4Layer
|
|
|
Size and weight |
Thickness
|
400mm
|
|
High
|
916mm
|
|
|
Length
|
680mm
|
|
|
Weight
|
80-215Kg
|
|
|
Electrical Parameters |
Charging mode
|
constant current
|
|
Charging Current |
0.5C(Standard)
|
|
|
1C(Maximum constant current@25℃)
|
||
|

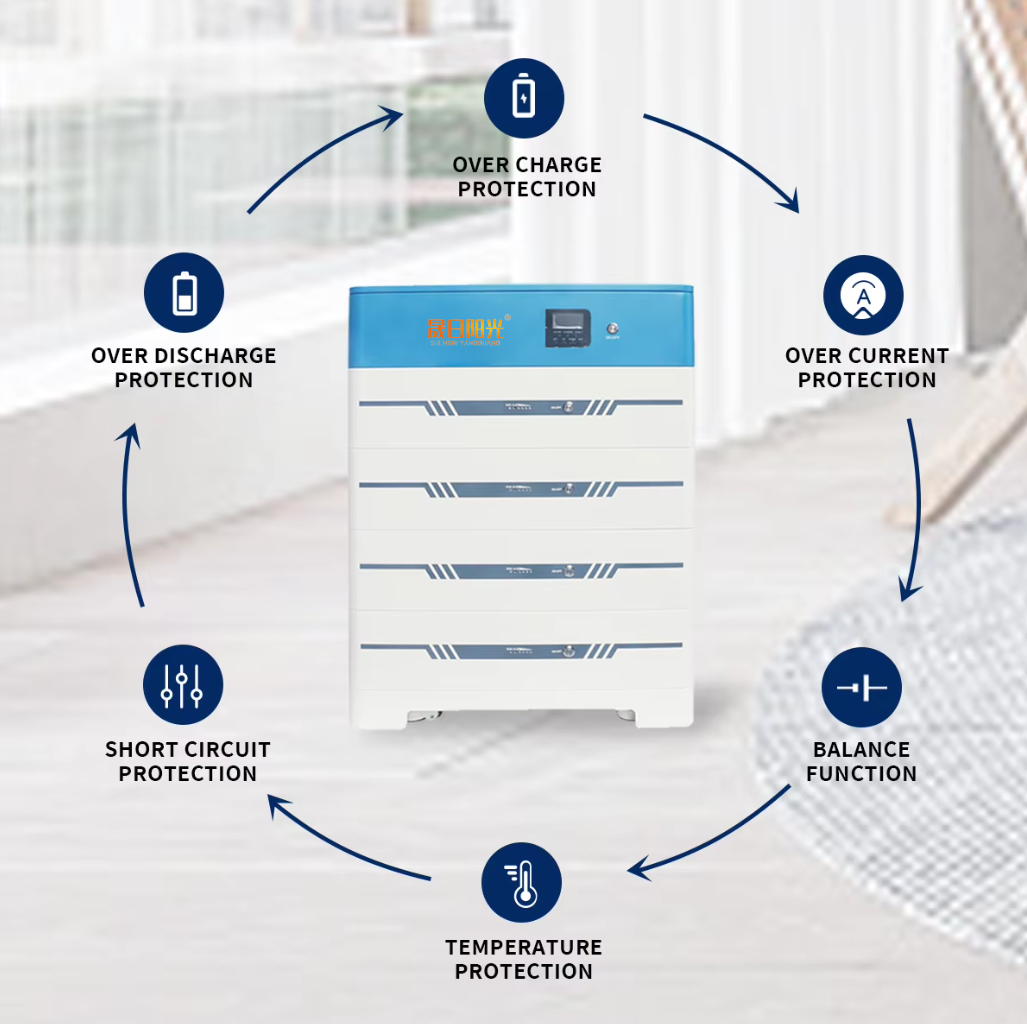

Overcharge protection voltage
|
44.8V
|
|
|
Discharge mode
|
constant current
|
|
|
Over-discharge protection voltage
|
58.4V
|
|
|
Discharge Current |
0.5C(Standard )
|
|
|
1C(Maximum constant current@25℃)
|
||
|
Working Parameters |
Working Temperature |
Charging (Small Current):0℃~+45℃
|
|
Discharge(Small Current)-20℃~+55℃
|
||
|
Storage Temperature |
Conventional storage temperature:-10~+45℃(Three months ,SOC:20%~60%)
|
|
|
Conventional storage temperature:
< 1 month：-5~+45℃ >6 months：0~+35℃ |
||
|
Storage Humidity
|
5%~95%
|
|
|
Transportation Environment |
Voltage:44.8V~58.4V
|
|
|
SOC:30%~60%
|
||
|

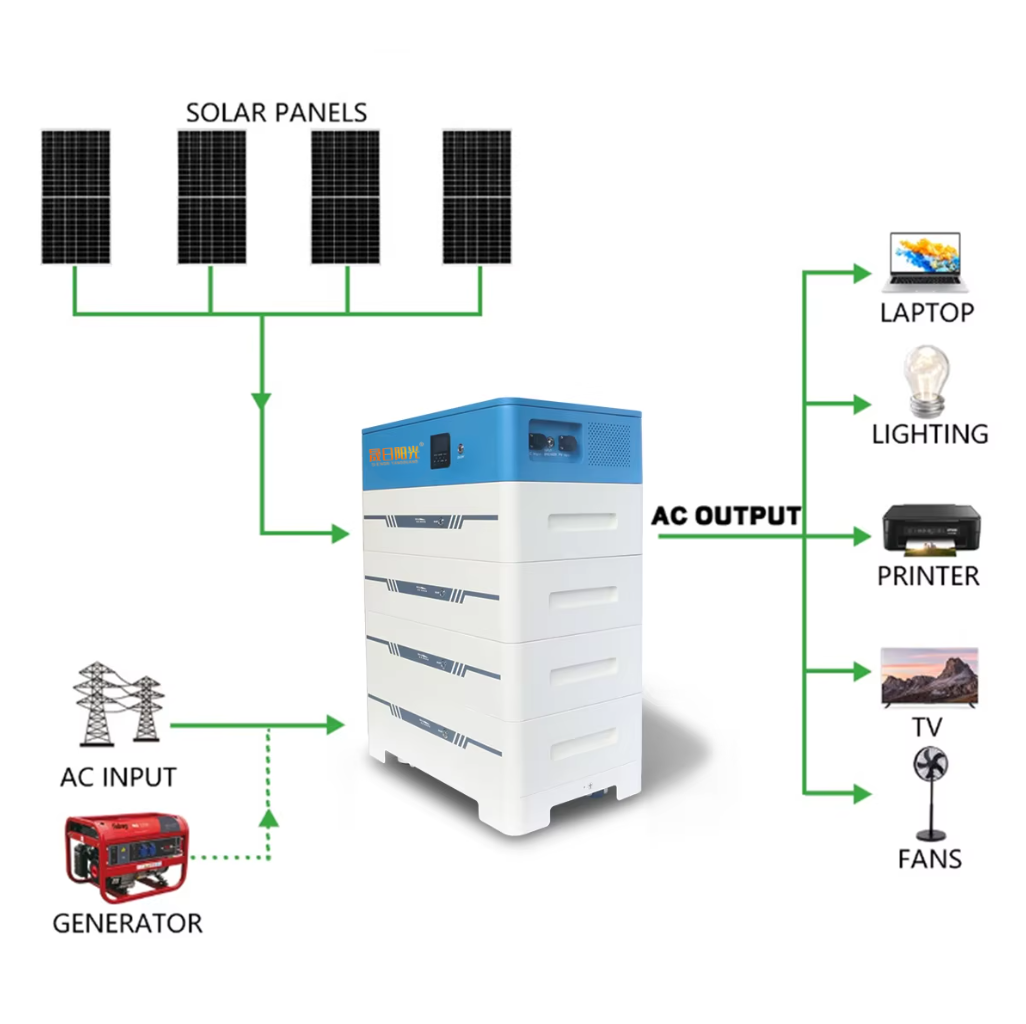

PV parameters |
Charging current
|
100A
|
|
Discharing current
|
100A
|
|
|
PV input power
|
5.12KW
|
|
|
MPPT voltage range
|
120V-450Vdc
|
|
|
PV voltage range
|
120V-450Vdc
|
|
|
Installation method
|
Floor/removable
|
|
|
System parameters |
PV input current
|
50A
|
|
Maximum charging current
|
60A
|
|
|
AC input voltage
|
220v/230vdc
|
|
|
Conversion time(inversion)
|
10ms
|
|
|
AC output power
|
5KW
|
|
|
AC output voltage
|
200Vac
|
|
|
AC output frequency
|
50/60Hz
|
|
|
Communication port
|
USB/RS485/WIFI/Bluetooth
|
|
|
IP grade
|
IP21(Indoor)
|
|
|
Cooling method
|
Convection and fan cooling
|
|
|
Safety cerificate
|
CE,RCM,UN383
|
|
|
Design life
|
10years
|
|
|
Optional features
|
Cloud platform management
|
Support intelligent cloud platform/APP
|
|
Remote intelligent management
|
Support 4G communication
|
分享
Key attributes
Other attributes
Battery Type：LiFePO4
Output Power Range：5~10 kWh

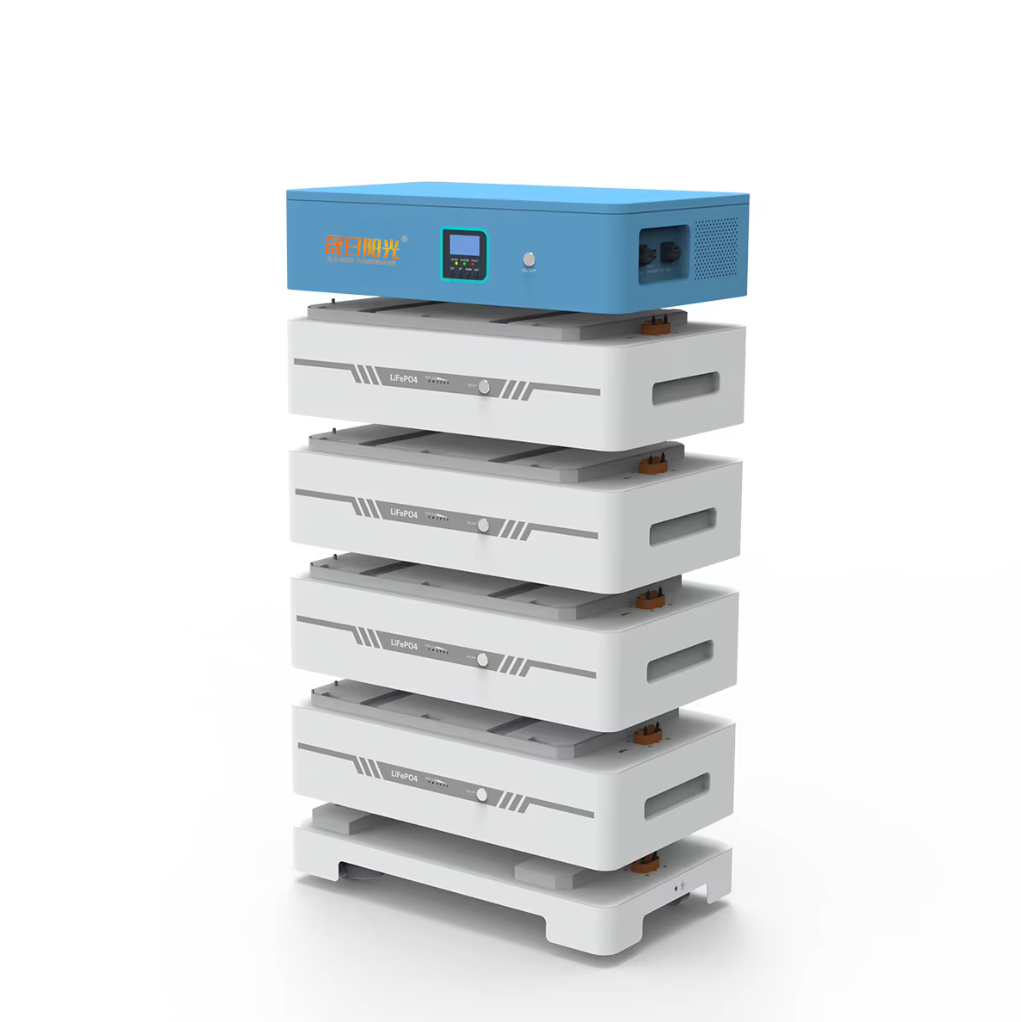

System Type：Stackable
Model Number：DP512300
Brand Name：Shengri Sunshine
Place of Origin：Guangdong, China
Dimension (L*W*H)：680*400*916mm
Weight：80~215kg
Type：All-in-one
Communication Port：CAN, RS232, RS485
Protection Class：IP54
Grid connection：Hybrid grid
Nominal Voltage：51.2V
Nominal Capacity：100Ah~300Ah
Energy：5120WH/10240WH/15360WH
Cycle life：6000 Cycles(Standard)
Inverter：5kW Single Phase Inverter
Application：Home Solar Energy Storage System
Certification：CE/ROHS/MSDS/UN38.3
Warranty：5 Years
