Dual AC output 8kw 8.6kw 10kw 11kw on off grid hybrid solar inverter Dual MPPT string with touchable colorful display
Dual AC output 8kw 8.6kw 10kw 11kw on off grid hybrid solar inverter Dual MPPT string with touchable colorful display
分享
Source Factory 8000W 11000W
48VDC 110VAC 220VAC 230VAC
High Frequency Off Grid Solar Hybrid Inverter
Strictly comply with ISO quality management system
products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.

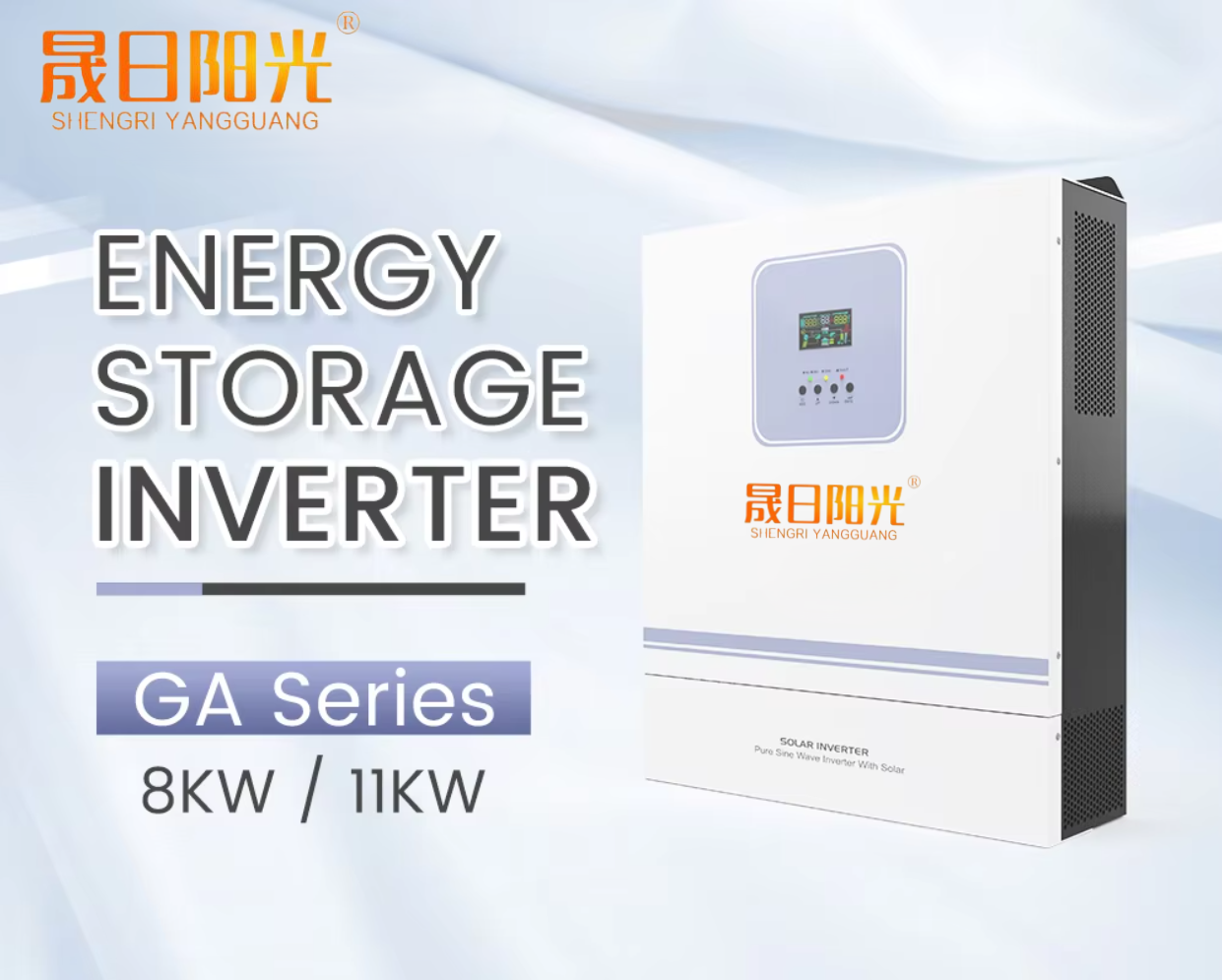

The GA series multi-function inverter/charger is a compact device that combines the functions of an inverter, MPPT solar charger, and battery charger to provide uninterrupted power support.
This inverter supports different types of batteries such as lead-acid and lithium-ion.
Build-in BMS Fnction And also Support Working without Battery.
With its user-friendly LCD display, users can easily configure settings such as battery charging current, AC/solar charger priority, and acceptable input voltage for various applications.
According to your needs, please feel free to contact us and know about other possible system architectures.
This inverter can be used to power most places, such as islands, showrooms, engineering projects.
Product Parameter
|
Model
|
GA8048JMH
|
GA11048JMH
|
|
Nominal Voltage
|
220/230/240VAC
|
|
|
Voltage Range
|
90-280VAC3V(Inverter Mode) 170-280VAC3V(UPSMode)
|
|
|
Frequency
|
50-60Hz Auto sensing
|
|
|
Rated Output Power
|
8000W
|
11000W
|
|
Output Voltage(Ac)
|
220/230]240VAC±5%
|
|
|
Output Frequency
|
50/60Hz±0.1%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer time(AC to DC)
|
10ms for Computer Equipment, 20ms for Household Equipment
|
|
|
Peak Power
|
16000VA
|
22000VA
|
|
Overload Capacity(Battery Mode)
|
21s@105%~150%Load； 11s@150%~200%Load； 400ms@>200%Load
|
|
|
Peak Efficiency(Battery Model)
|
98%
|
|
|
Norminal Voltage
|
48VDC
|
|
|
constant charging Voltage
|
56.4VDC
|
|
|
Float Charging Voltage
|
54VDC
|
|
|
Pv Charging Way
|
MPPT
|
|
|
Max PV Input Power
|
2*4000W
|
2*5500W
|
|
MPPT Controller Voltage
|
90-500VDC
|
|
|
MAX PV Input Voltage
|
500VDC
|
500VDC
|
|
MAX Pv Charge Current
|
120A
|
150A
|
|
MAX AC Charge Current
|
60A
|
60A
|
|
MAX Charge Current
|
120A
|
150A
|
|
LCD Display
|
AC input Voltage,AC input frequency,PV Voltage,PV Current,Output Voltage. Output Frequency, Battery Voltage,Load Current,etc.
|
|
|
RS232
|
5PIN/Pitch2.0mm
|
|
|
Expansion Slot Communication Interface
|
2x5PIN/Pitch2.54mm，Lithium battery BMS communication card、WIFl,etc
|
|
|
Parallel Interface
|
Yes
|
|
|
Operating Temperature
|
0-40°C
|
|
|
Humidity
|
20%~95%(Non-condensing)
|
|
|
Storage Temperature
|
-15~60°C
|
|
|
Altitude
|
<1000m
|
|
|
Noise(dB)
|
≤50db
|
|

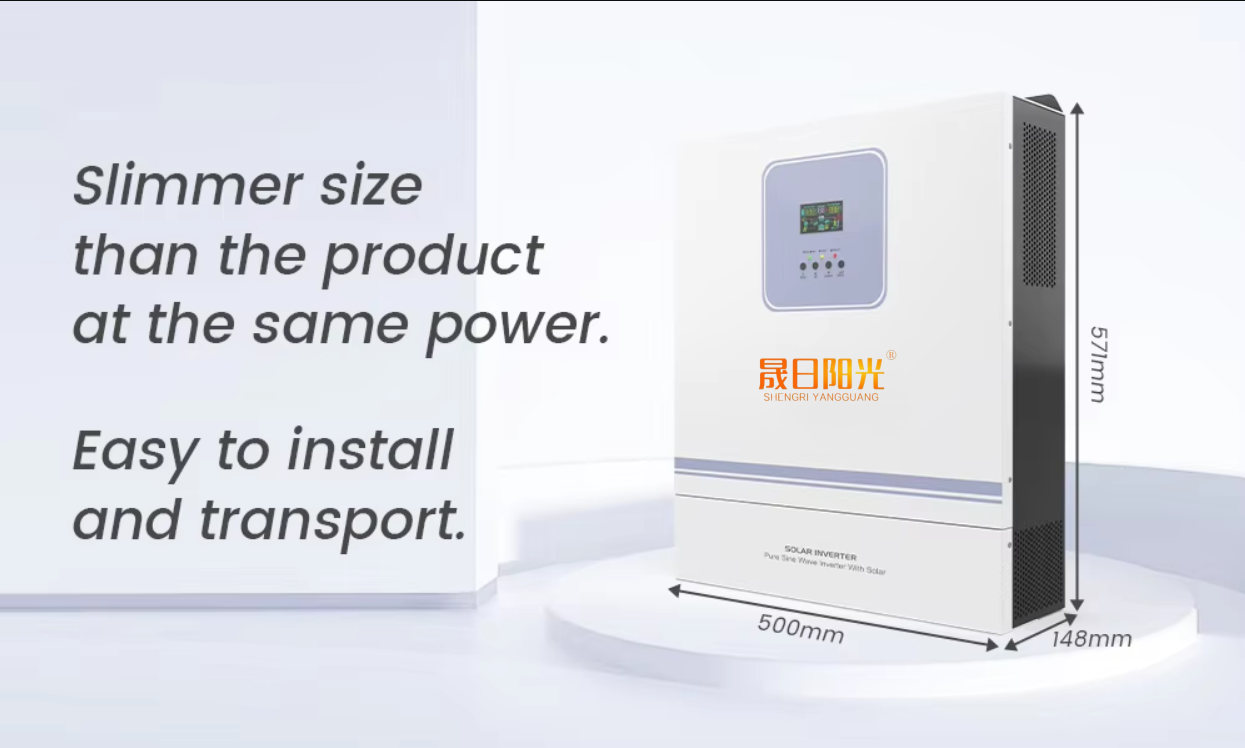

Product Overview
Designed to be slimmer in size compared to other products with the same power output.
This makes it incredibly easy to install and transport, saving you time and effort. With its compact design
you can easily find the perfect spot for it in your home or business.
Intuitive Control at Your Fingertips
Effortlessly command your energy with the Shengri Sunshine Hybrid Solar Inverter's intuitive control panel. Designed with user experience in mind, the panel offers: Clear Display,Simple Navigation,Immediate Feedback, LED indicators for AC/INV, CHG, and FAULT provide real-time operational alerts.
Our control panel is the gateway to a smarter energy solution, placing the power to monitor and adjust right in the palm of your hand.
Seamless Integration, Endless Possibilities
Your energy system requires robust connections and the Shengri Sunshine Hybrid Solar Inverter delivers just that.
>Versatile Ports: Equipped with AC OUTPUT, RS232, and BMS/RS485 ports for broad compatibility.
>Safe Connections: Clearly labeled PARALLEL CONNECTION terminals for secure and efficient inverter pairing.
>Direct Control: An accessible ON/OFF switch, ensuring straightforward operation and power management.
>PV and DC Inputs: Dedicated inputs for photovoltaic and DC sources provide flexibility for various installation scenarios.
Maximize your energy solutions with our inverter's advanced ports and terminals – designed for ease of use and engineered for performance.

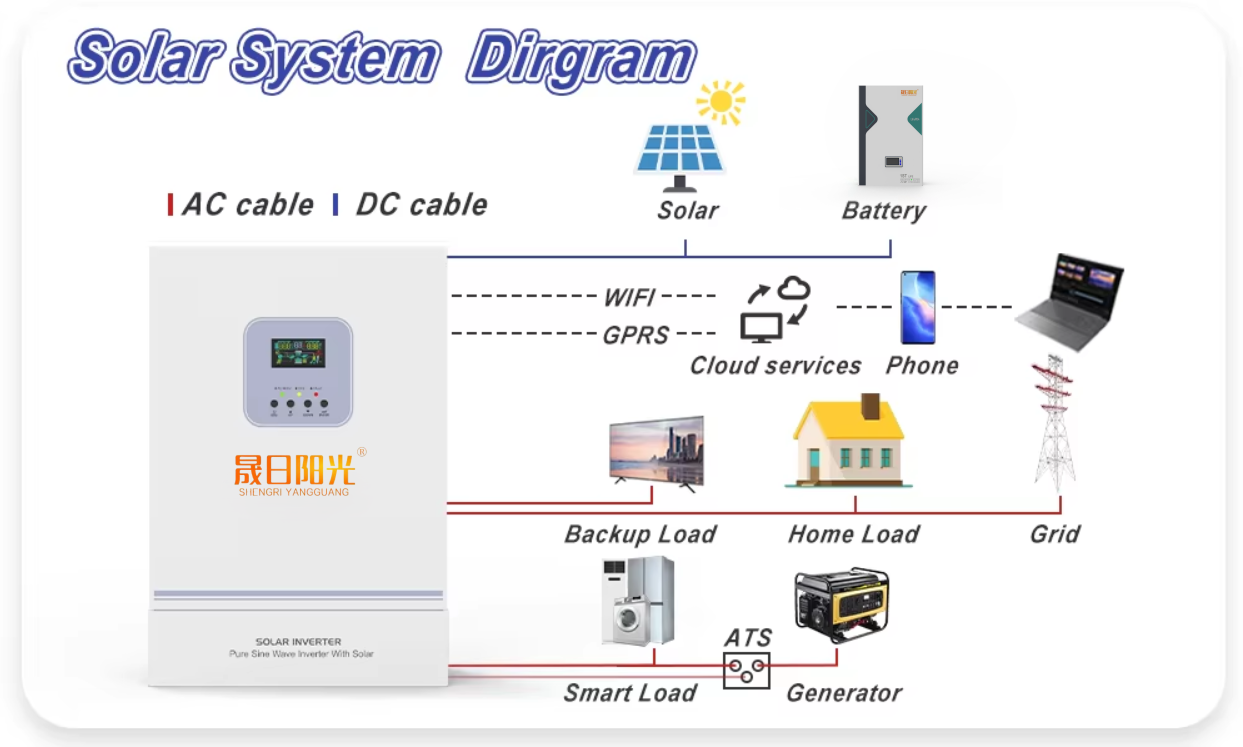

Harnessing Solar Synergy – The Shengri Sunshine Energy Network
Shengri Sunshine presents a seamless solar energy experience with our GA Series Inverter – the heart of your solar system. Our detailedSolar System Diagram illustrates the smart connectivity that powers your world:
>Dual Wiring System: Simplified AC and DC cable integration for efficient power transfer.
>Renewable Harmony: Connect solar panels and batteries to optimize green energy use.
>Smart Communication: Stay informed and in control with WIFI and GPRS for cloud services and mobile monitoring.
>Power Continuity: Ensure energy is always available with backup load options and an automatic transfer switch (ATS) for generator integration.
>Grid Interaction: Intelligent grid connection capabilities for energy export or supplemental power.
With Shengri Sunshine, you’re not just installing an inverter; you’re setting up a future-proof energy ecosystem for your home and business.

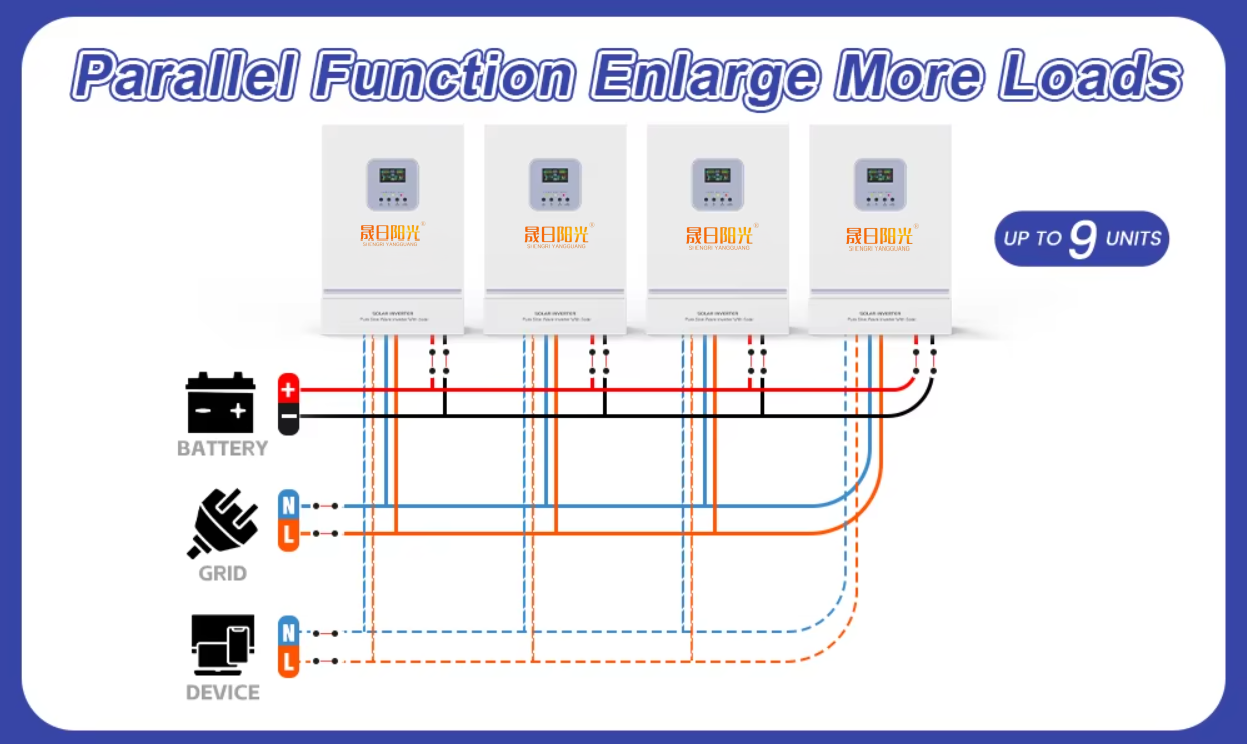

Expand Power, Multiply Possibilities – Scale As You Grow
Unlock the full potential of your energy system with Shengri Sunshine's scalable parallel inverter function. Our innovative design allows for:
>Synchronized Performance: Parallel connection ensures harmonious operation and maximized output across all units.
>Flexible Configuration: Accommodate a wide range of applications, from residential expansions to large-scale commercial projects.
>Optimized for Expansion: Future-proof your energy infrastructure with the ability to upgrade capacity as your needs evolve.
With Shengri Sunshine, expanding your energy solution is as simple as adding more units, ensuring that your system grows with your aspirations.
Tailored for Excellence – ODM Customizable Inverter Solutions
At Shengri Sunshine, we understand that one size does not fit all. That’s why we offer an array of customizable options to align with your specific needs:
>Custom Product Design: Shape your energy solutions with customized appearance, size, and color options to match your unique specifications.
>Software Customization: Enhance performance and compatibility with tailored Battery Management System (BMS) software, fine-tuning to your operational requirements.
>Custom Packaging Solutions: Extend your brand’s reach with custom-designed packaging that resonates with your marketing and branding strategies.
>R&D Support: Benefit from our dedicated R&D support to develop innovative new products or refine existing models.
>Flexible Production: Adapt to market demands with flexible production scheduling and batch sizes, ensuring you receive what you need, when you need it.
>After-Sales Service: Rely on our comprehensive after-sales support including technical assistance, warranty services, and efficient repair or replacement strategies.
Partner with Shengri Sunshine – where your vision for a sustainable energy future becomes a personalized reality.
FAQ
Q1: Why you should choose us?
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc
for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
