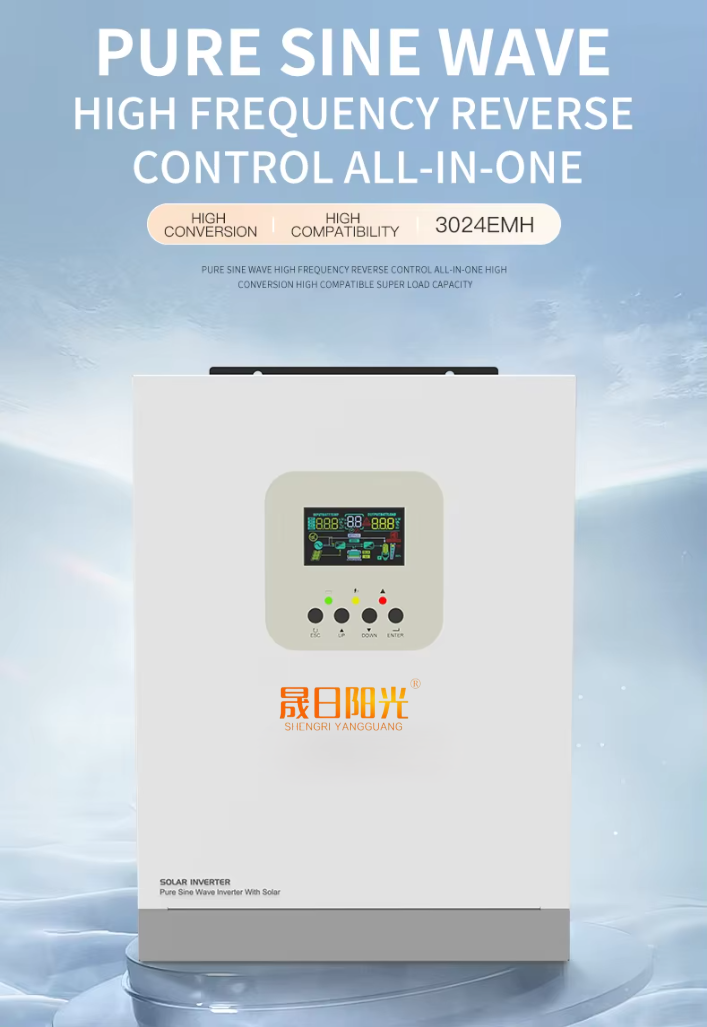

pure sine wave 3000 watt Wide PV range off grid 3KW 3000w 24v mppt solar power inverter
pure sine wave 3000 watt Wide PV range off grid 3KW 3000w 24v mppt solar power inverter
分享
Source Factory 1500W 2000W 3000W
12VDC 24VDC PV500VDC 110VAC 220VAC 230VAC
High Frequency Off Grid Solar Inverter
Strictly comply with ISO quality management system
products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
The G series multi-function inverter/charger is a compact device that combines the functions of an inverter, MPPT solar charger, and battery charger to provide uninterrupted power support.
At the same time, this inverter supports different types of batteries such as lead-acid and lithium-ion.
With its user-friendly LCD display, users can easily configure settings such as battery charging current, AC/solar charger priority, and acceptable input voltage for various applications.
According to your needs, please feel free to contact us and know about other possible system architectures.
This inverter can power various electrical appliances in home or office environments, including light tubes, fans,refrigerators,air conditioners, and other motor-type appliances.
Product Parameter
|
Model
|
GA3024EMH
|
|
Output rated power
|
3000W
|
|
Input
|
|
|
Input system type
|
L+N+PE
|
|
Frequency range
|
220/230/240VAC
|
|
Voltage range
|
90-280VAC+3V (Normal mode )170-280VAC+3V(UPS mode)50Hz/60Hz(Self-adaption)
|
|
Frequency range
|
50Hz/60Hz(Self-adaption)
|
|
Output
|
|
|
Output voltage
|
220/230/240VAC+5%
|
|
Output frequency
|
50/60Hz+0.1%
|
|
Waveform
|
Pure sine wave
|
|
Switching time (can be set)
|
Computer equipment10ms，Domestic appliance 20ms
|
|
Peak power
|
6000VA
|
|
Overload capacity
|
Battery mode:10.5s@110%~150% Load
|
|
Peak efficiency (battery mode)
|
>94%
|
|
Battery
|
|
|
Rated voltage
|
24VDC
|
|
Constant voltage charging
voltage (can be set)
|
28.2VDC
|
|
Floating charging
voltage (can be set)
|
27VDC
|
|
Charger
|
|
|
PV charging method
|
MPPT
|
|
PV maximum input power
|
3000W
|
|
MPPT input voltage range
|
30-400VDC
|
|
Maximum PV input voltage
|
400VDC
|
|
Maximum PV charging current
|
80A
|
|
Maximum charging current
|
80A
|
|
Display
|
|
|
LCD interface
|
Operation mode / load / input / output, etc
|
|
Interface
|
Baud rate2400
|
|
RS232
|
Lithium batteryBMSpact'olcatigtocard, WiFl card,
|
|
Extended slot communication interface
|
No parallel function
|
|
Environmental parameters
|
|
|
Operating environmenthumidity
|
0~40C
|
|
Operating environmenthumidity
|
20%~95%(No condensation
|
|
Storage temperature
|
-15~60C
|
|
Elevation
|
The altitude shall not exceed 1000m, and over 1000m dropthe highest 4000m,refer to 1EC62040
|
|
Noise
|
≤50db
|
|
Physical parameters
|
|
|
Depth x width x height (mm)
|
399x285x118
|
|
Weight (for reference) KG
|
6
|
Product Overview

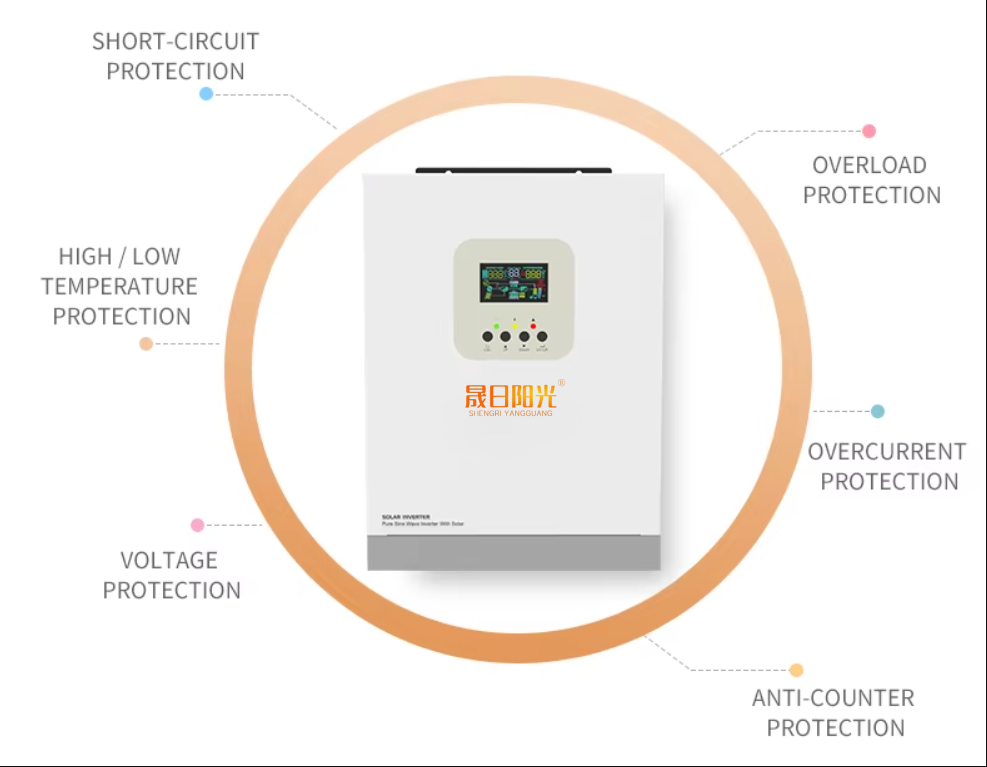

Multi-protection, Respond to a variety of emergencies.
Support BMS lithium Battery communication.
You can enjoy the WIFI function of this Hybrid Inverter by purchasing the WIFI module separately and connecting it to the APP. This will allow you to monitor the inverter's performance.
Remind:
To ensure the appropriate matching of the battery capacity for the system, it is crucial to consider the specific usage requirements of the load and application scenarios. Failing to do so can result in either insufficient battery capacity or excessive waste of power generation.
For more information, please consult the manual recommendation or CONTACT our online
customer service.
