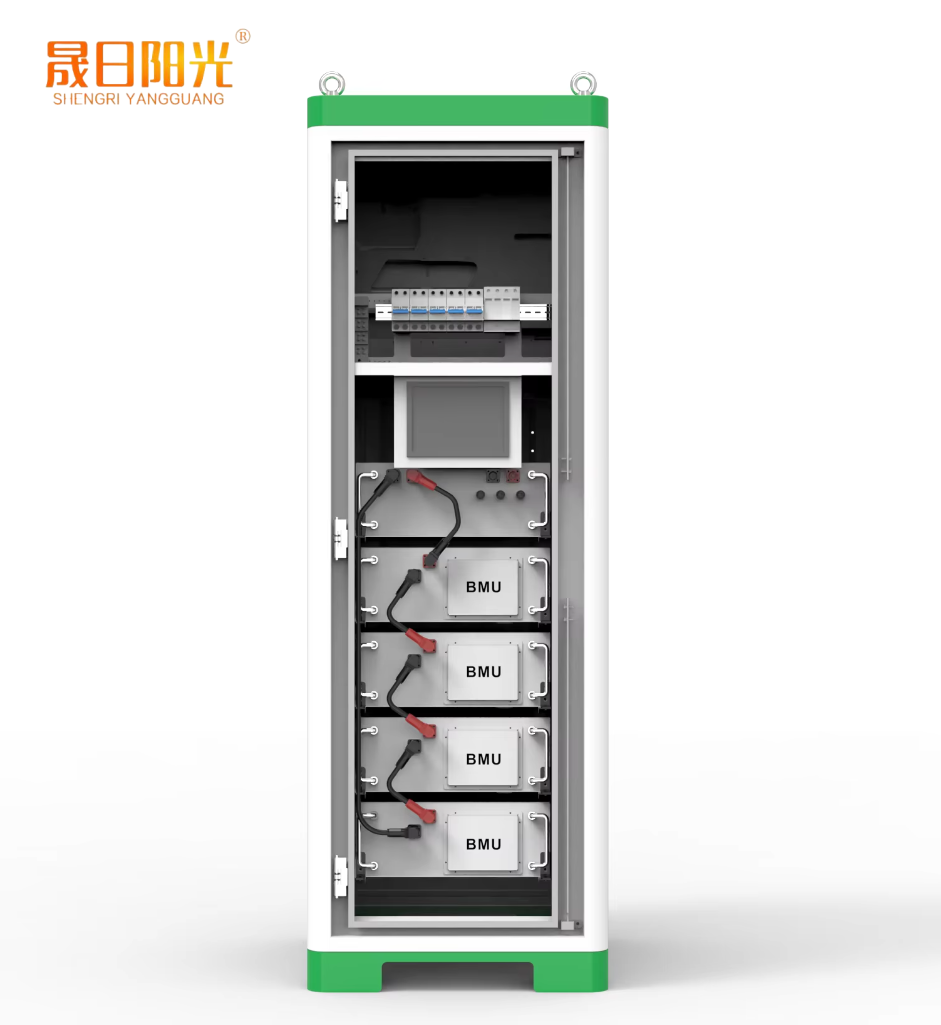

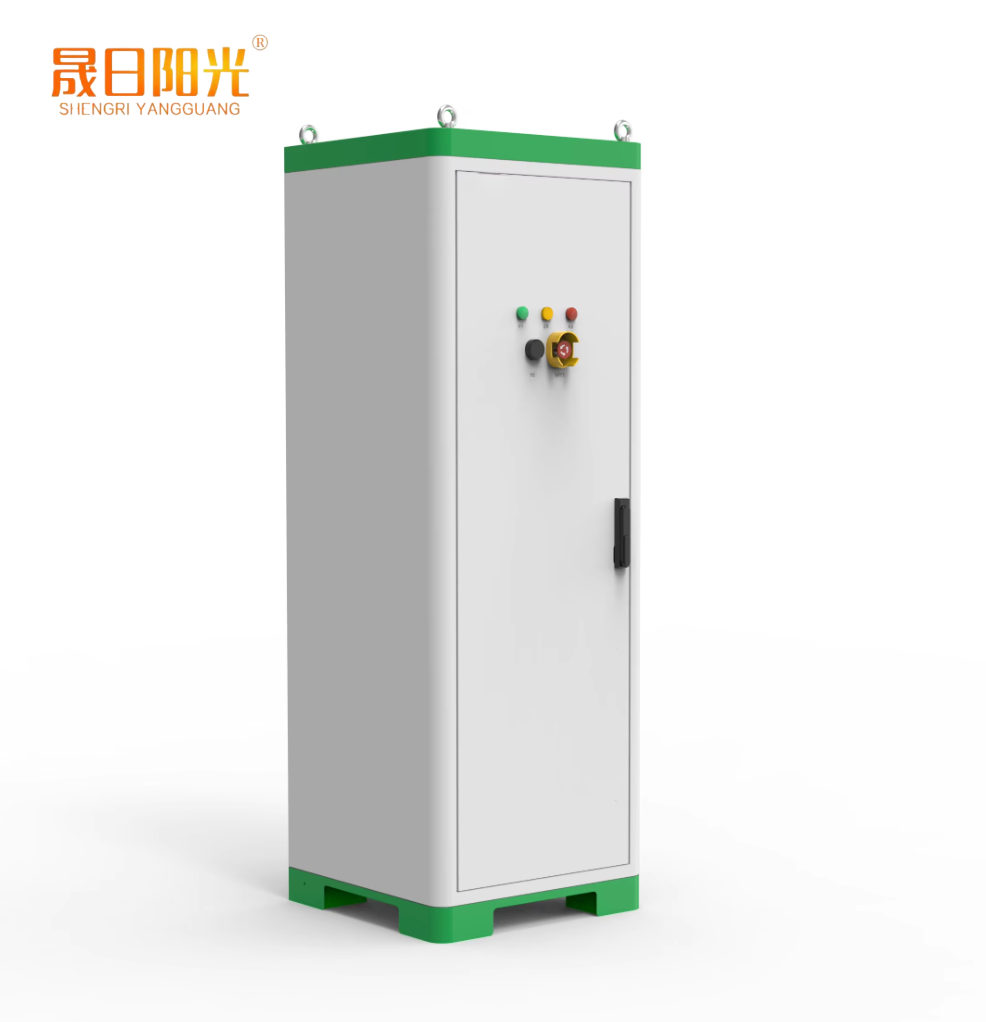

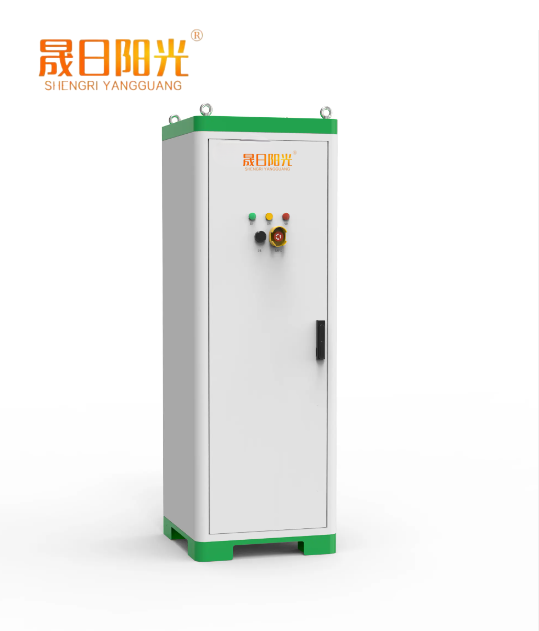

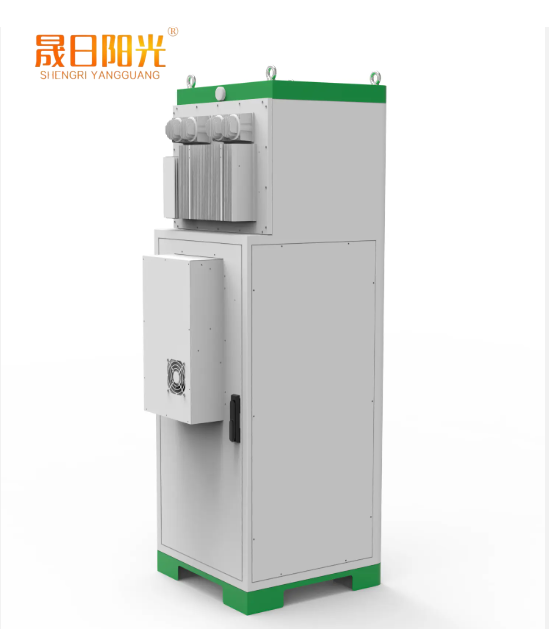

10kW/20kWh Hybrid Energy Storage System Lithium Ion OUTDOOR CABINET TYPE INDUSTRIAL AND COMMERCIAL ENERGY STORAGE
Specification
|
item
|
value
|
|
Battery Type
|
LiFePO4
|
|
Model Number
|
C102F
|
|
Brand Name
|
Shengri Sunshine
|
|
Place of Origin
|
China
|
|
Dimension (L*W*H)
|
1910*1310*2280CM
|
|
Weight
|
2850kg
|
|
Communication Port
|
RS485, CAN, RS232
|
|
Protection Class
|
IP54
|
|
Grid connection
|
Hybrid grid, On grid
|
|
Cooling
|
Liquid Cooling
|
|
Rated AC power
|
125KW
|
|
Maximum efficiency
|
98.2%
|
|
Rated AC voltage
|
230/400V
|
|
Rated ac frequency
|
50/60HZ
|
|
Energy cycle rate
|
92%
|
|
BMS communication
|
CAN2.0b
|
|
EMS communication
|
4G/CAN/RS485
|
|
Ambient temperature
|
-30℃~55℃
|
|
Annual decay rate
|
3%
|
|
Warranty period
|
5 years
|
