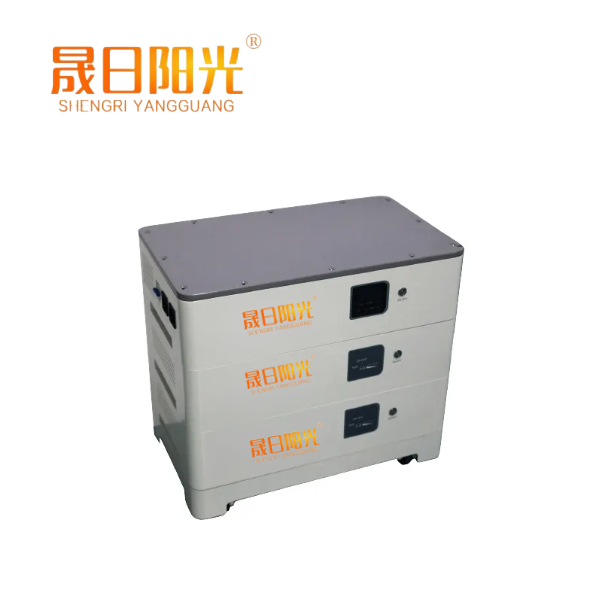

48v 200ah all in one new energy lifepo4 battery solar energy system with off grid inverter for solar energy products
Overview
|
Battery type
|
LiFePO4
|
|||||
|
Battery working voltage
|
32.5~54.3V
|
|||||
|
Rated energy capacity
|
10KWh
|
|||||
|
Layers
|
3 layers
|
|||||
|
Charging current
|
100A
|
|||||
|
PV input power
|
5.12KW
|
|||||
|
Layers
|
3 layers(including the inverter)
|
|||||
|
MPPT voltage range
|
120V-450Vdc
|
|||||
|
PV voltage range
|
120V-450Vdc
|
|||||
|
Installation method
|
Floor/removable
|
|||||
|
Design life
|
10 years
|
|||||
|
Communication port
|
USB/RS485/WIFI/Bluetooth
|
|||||
|
IP grade
|
IP21(indoor)
|
|||||
|
Design life
|
10 years
|
|||||
分享
Key attributes
Other attributes
Battery Type:LiFePO4
Model Number:all in one 10KWh
Brand Name:Shengri Sunshine
Place of Origin: China
Model Number:Shengri Sunshine-all-in-one 512200
Battery Type:Lithium Iron phosphate battery
Nominal Capacity:200Ah
Charge current:0.2C(Standard);1C(Max)
Charge cut off voltage:54.3V
Discharge cut off voltage:40.5v
Warranty:3 years (Standard)
Cycle life:6000 Cycles(0.5C standard charge)
OEM/ODM:Yes
Packaging and delivery
Packaging Details:strong package with foam inside
Port:Shenzhen/nansha
Selling Units:Single item
Single package size:78X48X30 cm
Single gross weight:50.000 kg
