48V 5Kwh 10Kwh 20Kwh Energy Power Wall LiFePO4 Battery Pack Solar Panel Solar Lithium Battery For Home
Products Parameters
|
Basic Parameters
|
Voltage
|
24V
|
|||||
|
Capacity
|
120Ah(Standard )
|
||||||
|
Energy
|
2880Wh
|
||||||
|
Internal resistance
|
≤120mΩ
|
||||||
|

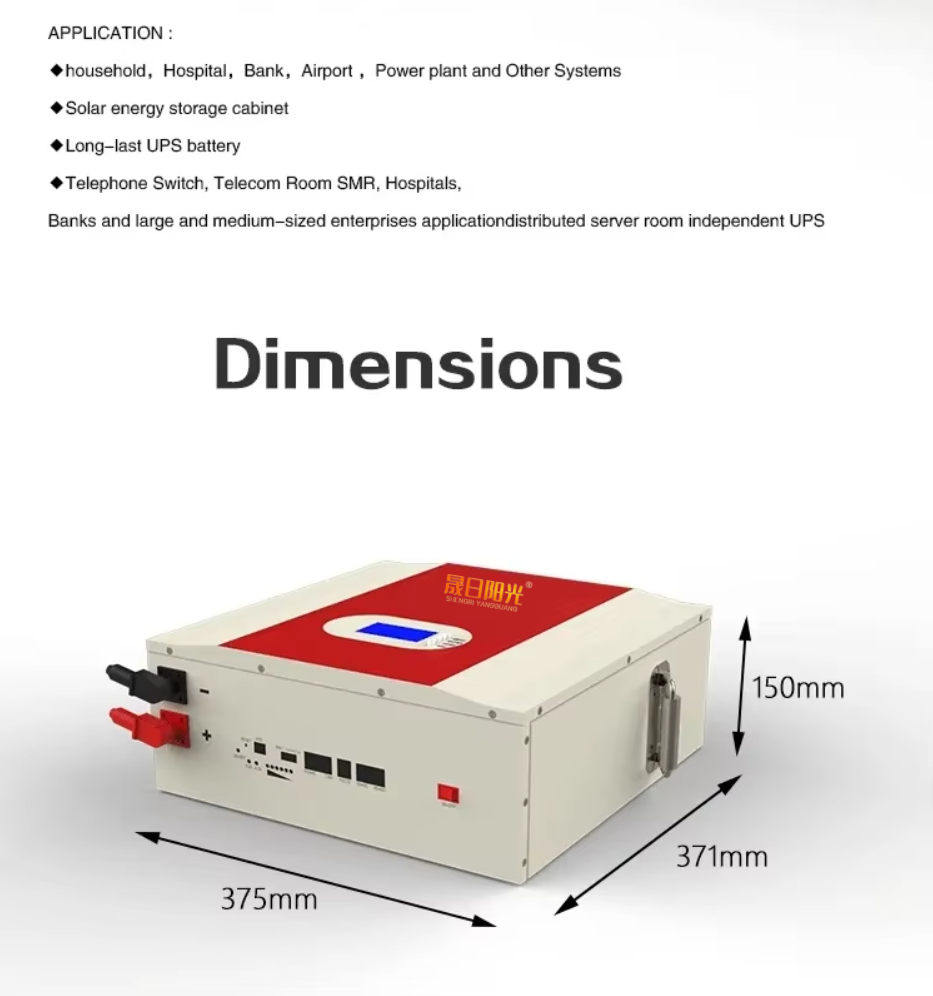

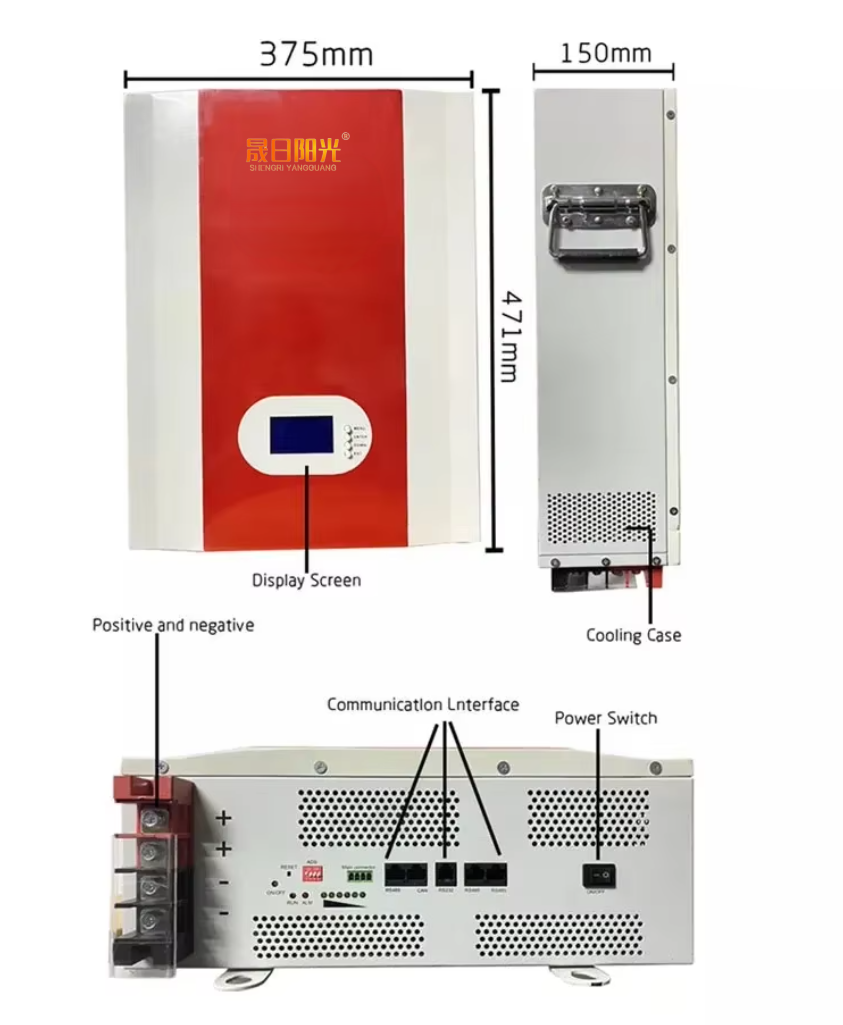

Size and weight
|
Thickness
|
150mm
|
|||||
|
High
|
375mm
|
||||||
|
Length
|
371mm
|
||||||
|
Weight
|
29Kg
|
||||||
|
Electrical Parameters
|
Charging mode
|
constant current
|
|||||
|
Charging Current
|
0.5C(Standard)
|
||||||
|
1C(Maximum constant current@25℃)
|
|||||||
|
Overcharge protection voltage
|
29.2V
|
||||||
|
Discharge mode
|
constant current
|
||||||
|
Discharge Current
|
0.5C(Standard )
|
||||||
|
1C(Maximum constant current@25℃)
|
|||||||
|
Over-discharge protection voltage
|
20.3V
|
||||||
|
Working Parameters
|
Working Temperature
|
Charge(Small Current):0℃~+45℃
|
|||||
|
Discharge(Small Current)-20℃~+55℃
|
|||||||
|
Storage Temperature
|
Conventional storage temperature:-10~+45℃(Three months ,SOC:20%~60%)
|
||||||
|
Conventional storage temperature:
< 1 month：-5~+45℃ >6 months：0~+35℃ |
|||||||
|
Storage Humidity
|
5%~95%
|
||||||
|
Transportation Environment
|
Voltage:23.7V~26.2V
|
||||||
|
SOC:30%~60%
|
|||||||
