5kwh 10kw Powerwall Lithium Ion Phosphate Lifepo4 Battery 100ah 51v All In One Home Energy Storage System

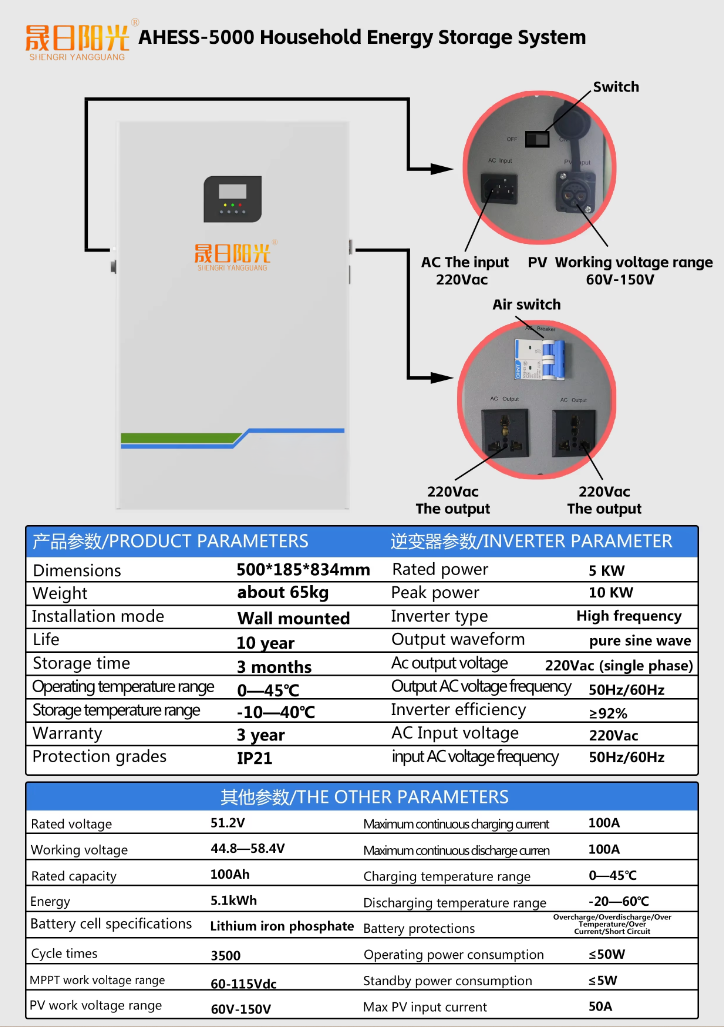

Products Parameters
|
Battery type
|
LiFePO4/NCM
|
|||||
|
Voltage
|
48V
|
|||||
|
Capacity
|
100Ah(Standard )
|
|||||
|
Energy
|
4800Wh
|
|||||
|
Internal resistance
|
≤100mΩ
|
|||||
|
Standard cycles
|
≥6000(@0.5C,80%DOD,25℃)
|
|||||
|
Self-discharge
|
<5%(after 90 days storage)
|
|||||
|
Standard warranty
|
3 years(longer warranty accoording to customers)
|
|||||
|

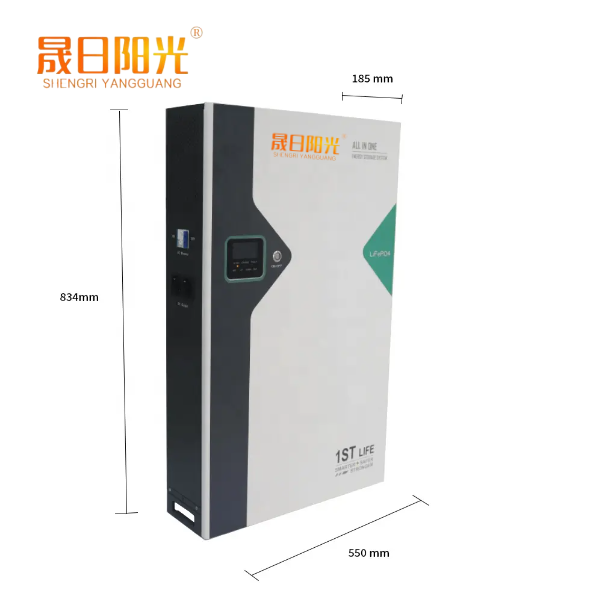

Length
|
500mm
|
|||||
|
Width
|
185mm
|
|||||
|
Height
|
834mm
|
|||||
|
Weight
|
65Kg
|
|||||
|
Installation way
|
Wall mounted
|
|||||
|
Communication ports
|
CAN/RS485/RS232
|
|||||
|
Compatible inverters
|
Growatt/Goodwe/Deye/Srne/Voltronic and others
|
|||||
|
Charging mode
|
CC/CV
|
|||||
|
Charging Current
|
0.2C(Standard)
|
|||||
|
1C(Maximum constant current@25℃)
|
||||||
|
Overcharge protection voltage
|
44.8V
|
|||||
|
Discharge mode
|
CC/CV
|
|||||
|
Discharge Current
|
0.2C(Standard )
|
|||||
|
1C(Maximum constant current@25℃)
|
||||||
|
Over-discharge protection voltage
|
44.8V
|
|||||
|
Working Temperature
|
Charge(Small Current):0℃~+45℃
|
|||||
|
Discharge(Small Current)-20℃~+55℃
|
||||||
|
Storage Temperature
|
Conventional storage temperature:-10~+45℃
(Three months ,SOC:20%~60%)
|
|||||
|
Conventional storage temperature:
< 1 month：-5~+45℃ >6 months：0~+35℃ |
||||||
|
Storage Humidity
|
5%~95%
|
|||||
|
Transportation Environment
|
Voltage:44.8~58.4V
|
|||||
|
SOC:30%~60%
|
||||||
