24v 100ah Rack mounted off grid split lithium ion solar batter
Products Parameters
|
Battery type
|
LiFePO4/NCM
|
|||||
|
Voltage
|
24V
|
|||||
|
Capacity
|
100Ah(Standard )
|
|||||
|
Energy
|
2400Wh
|
|||||
|
Internal resistance
|
≤100mΩ
|
|||||
|
Standard cycles
|
≥3000(@0.5C,80%DOD,25℃)
|
|||||
|
Self-discharge
|
<5%(after 90 days storage)
|
|||||
|
Standard warranty
|
3 years(longer warranty accoording to customers)
|
|||||
|
Length
|
442mm
|
|||||
|
Width
|
440mm
|
|||||
|
Height
|
145mm
|
|||||
|
Weight
|
36Kg
|
|||||
|

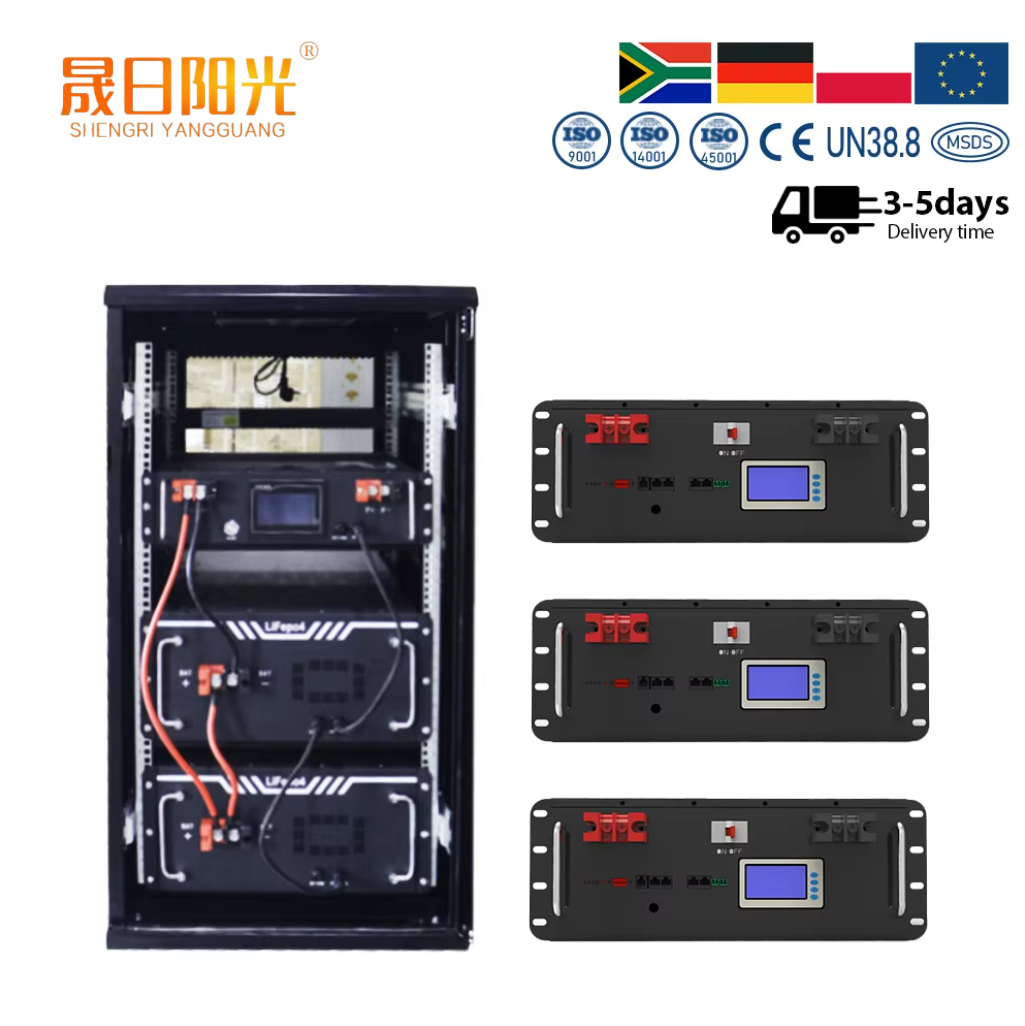

Installation way
|
Rack mounted
|
|||||
|

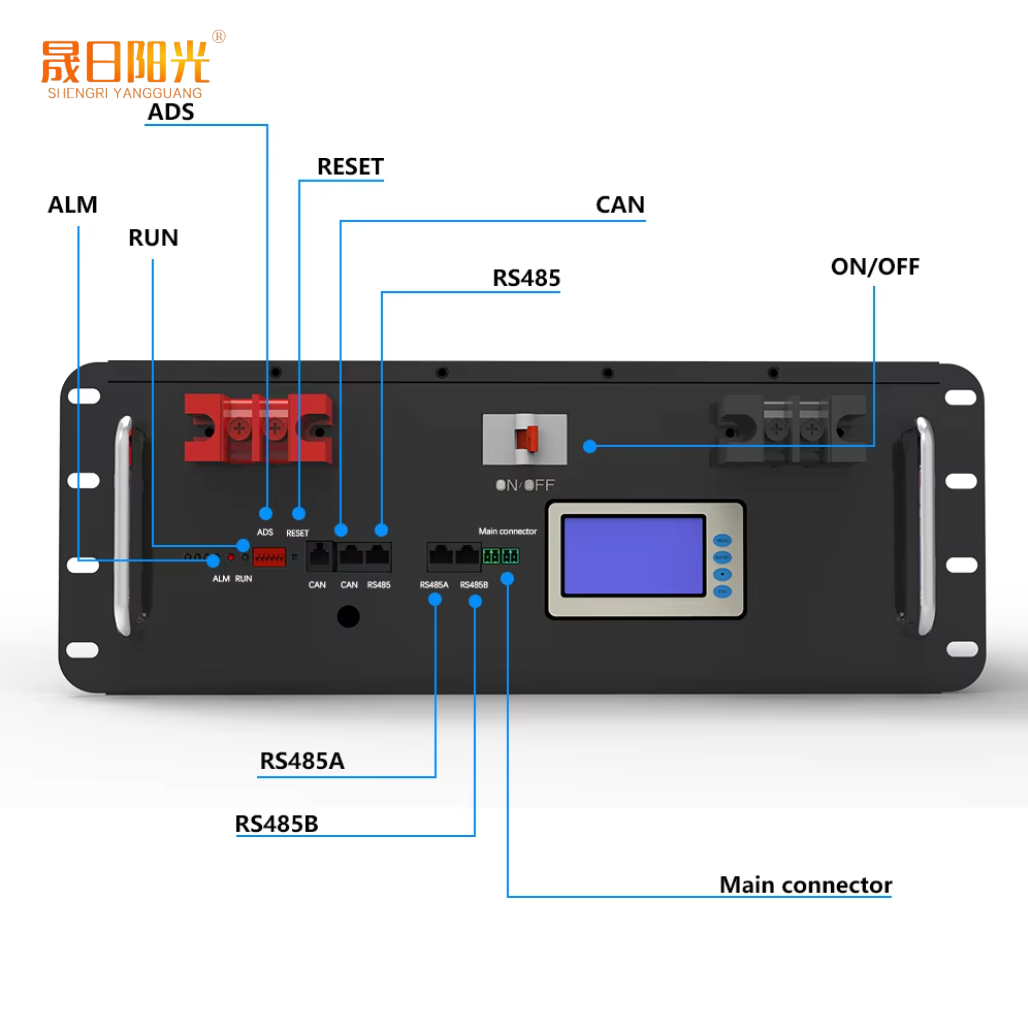

Communication ports
|
CAN/RS485
|
|||||
|
Compatible inverters
|
Growatt/Goodwe/Deye/Srne/Voltronic and others
|
|||||
|
Charging mode
|
CC/CV
|
|||||
|
Charging Current
|
0.2C(Standard)
|
|||||
|
1C(Maximum constant current@25℃)
|
||||||
|
Overcharge protection voltage
|
28.8V
|
|||||
|
Discharge mode
|
CC/CV
|
|||||
|
Discharge Current
|
0.2C(Standard )
|
|||||
|
1C(Maximum constant current@25℃)
|
||||||
|
Over-discharge protection voltage
|
20.8V
|
|||||
|
Working Temperature
|
Charge(Small Current):0℃~+45℃
|
|||||
|
Discharge(Small Current)-20℃~+55℃
|
||||||
|
Storage Temperature
|
Conventional storage temperature:-10~+45℃(Three months ,SOC:20%~60%)
|
|||||
|
Conventional storage temperature:
< 1 month：-5~+45℃ >6 months：0~+35℃ |
||||||
|
Storage Humidity
|
5%~95%
|
|||||
|
Transportation Environment
|
Voltage:22V~26V
|
|||||
|
SOC:30%~60%
|
||||||
