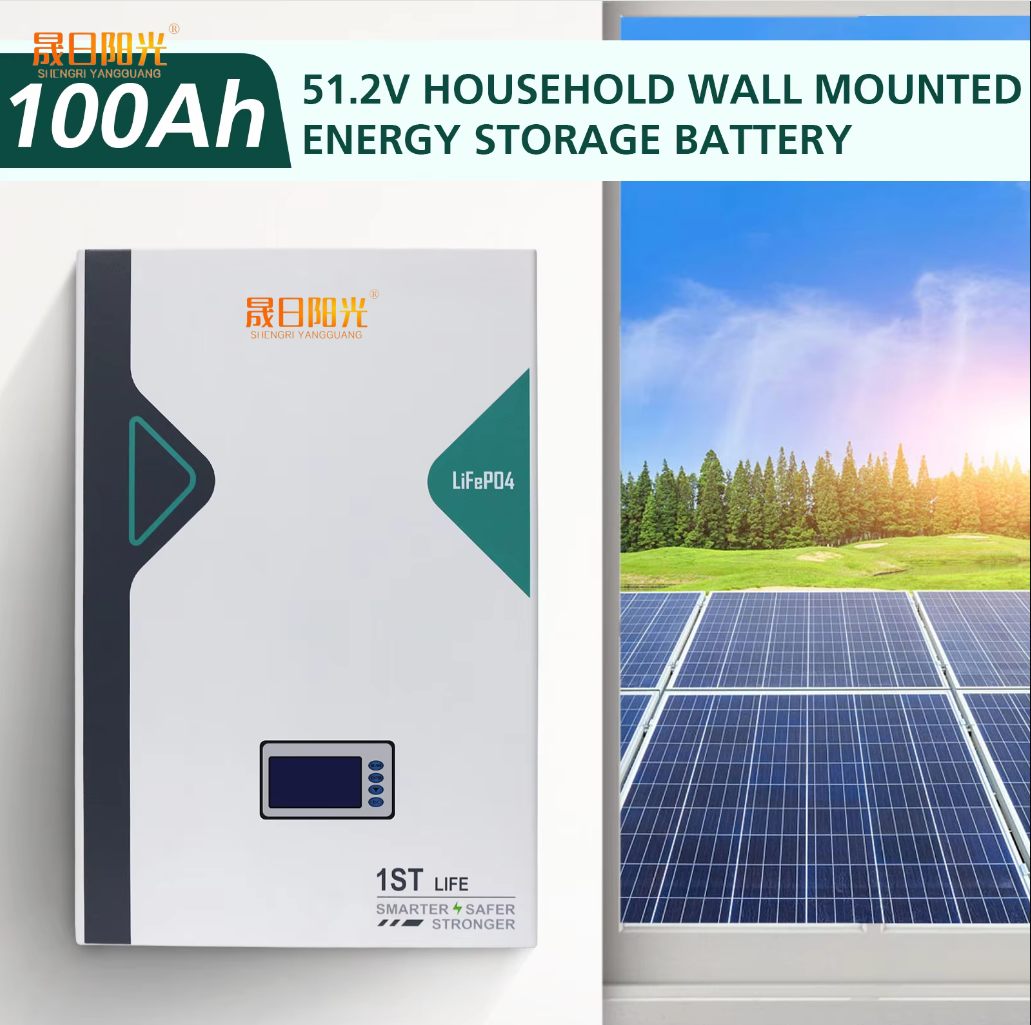

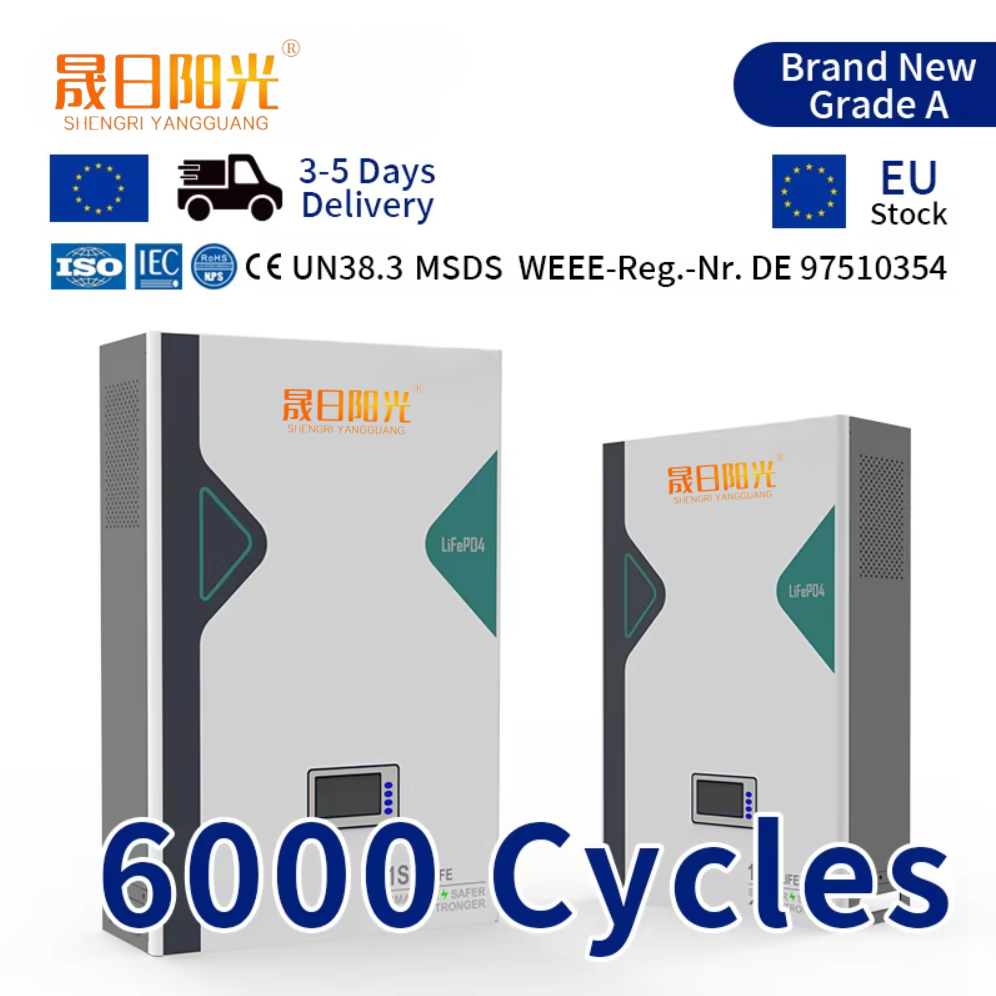

Wholesale 48V Lithium Ion Wall Mounted 51.2V100Ah 200Ah Lifepo4 Rechargeable Smart Bms Lifepo4 Battery Pack
Products Parameters
|
Battery type
|
LiFePO4/NCM
|
|||||
|
Voltage
|
51.2V
|
|||||
|
Capacity
|
100Ah(Standard )
|
|||||
|
Energy
|
5000Wh
|
|||||
|
Internal resistance
|
≤100mΩ
|
|||||
|
Standard cycles
|
≥6000(@0.5C,80%DOD,25℃)
|
|||||
|
Self-discharge
|
<5%(after 90 days storage)
|
|||||
|
Standard warranty
|
5 years(longer warranty accoording to customers)
|
|||||
|
Length
|
400mm
|
|||||
|
Width
|
150mm
|
|||||
|
Height
|
610mm
|
|||||
|
Weight
|
49Kg
|
|||||
|
Communication ports
|
CAN/RS485/RS232
|
|||||
|

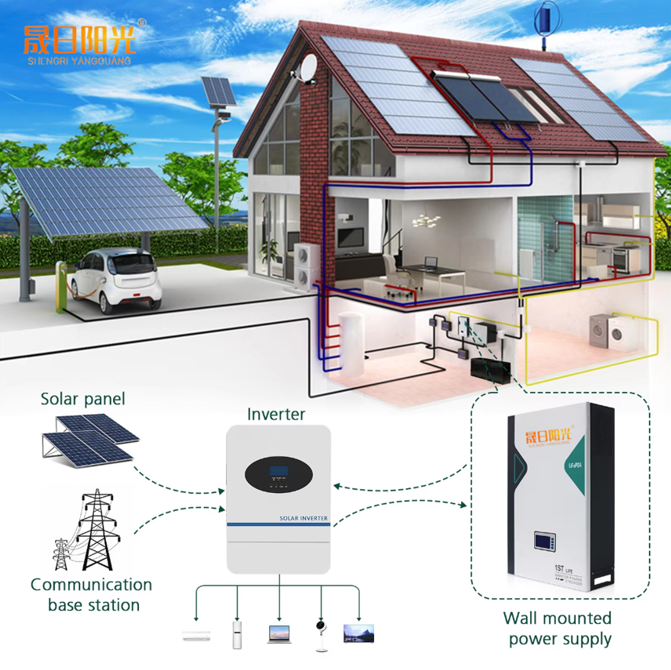

Compatible inverters
|
Growatt/Goodwe/Deye/Srne/Voltronic and others
|
|||||
|
Charging mode
|
CC/CV
|
|||||
|
Charging Current
|
0.2C(Standard)
|
|||||
|
1C(Maximum constant current@25℃)
|
||||||
|

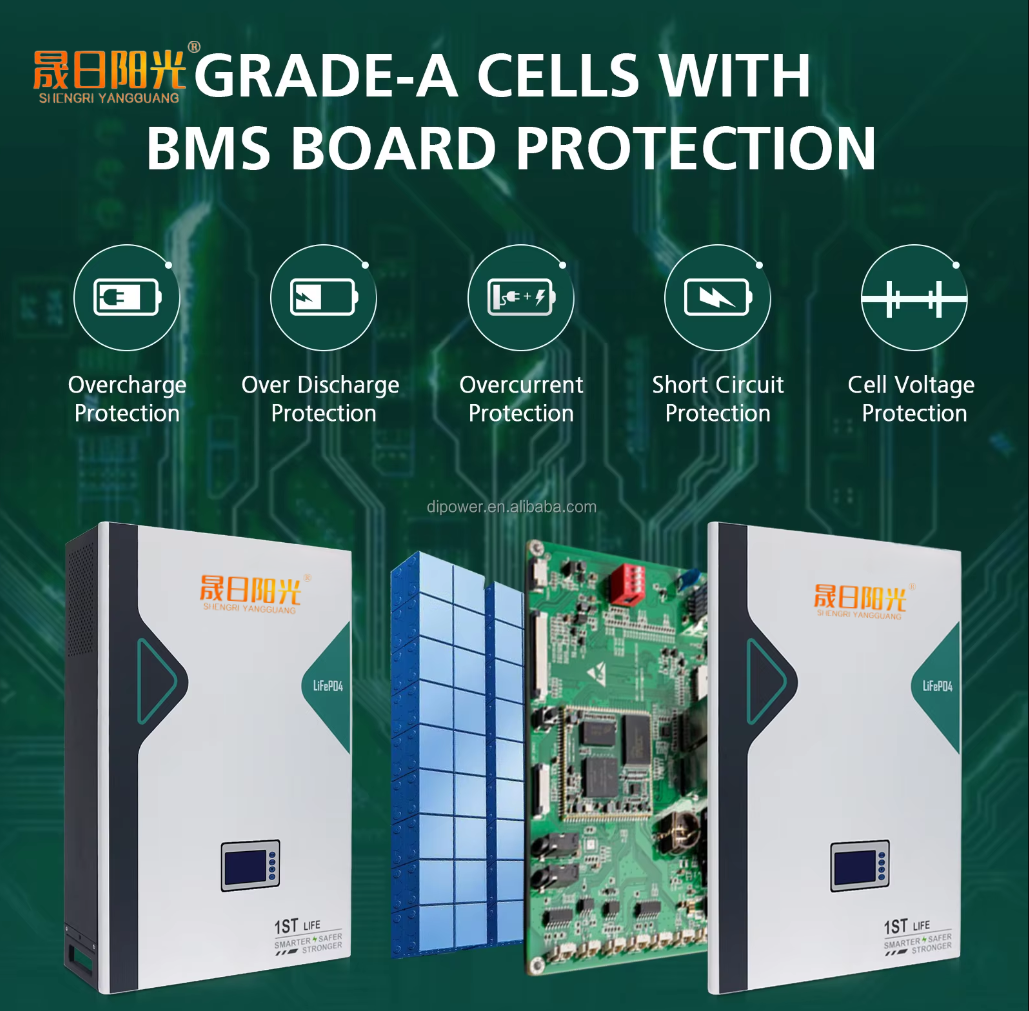

Overcharge protection voltage
|
54.6V
|
|||||
|
Discharge mode
|
CC/CV
|
|||||
|
Discharge Current
|
0.2C(Standard )
|
|||||
|
1C(Maximum constant current@25℃)
|
||||||
|
Over-discharge protection voltage
|
36.4V
|
|||||
|
Working Temperature
|
Charge(Small Current):0℃~+45℃
|
|||||
|
Discharge(Small Current)-20℃~+55℃
|
||||||
|
Storage Temperature
|
Conventional storage temperature:-10~+45℃(Three months ,SOC:20%~60%)
|
|||||
|
Conventional storage temperature:
< 1 month：-5~+45℃ >6 months：0~+35℃ |
||||||
|
Storage Humidity
|
5%~95%
|
|||||
|
Transportation Environment
|
Voltage:22V~26V
|
|||||
|
SOC:30%~60%
|
||||||
